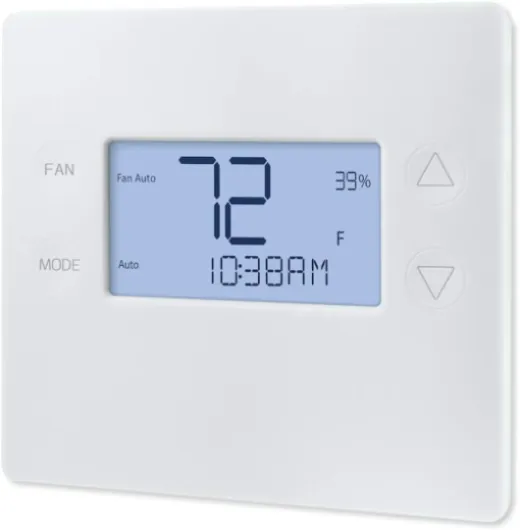

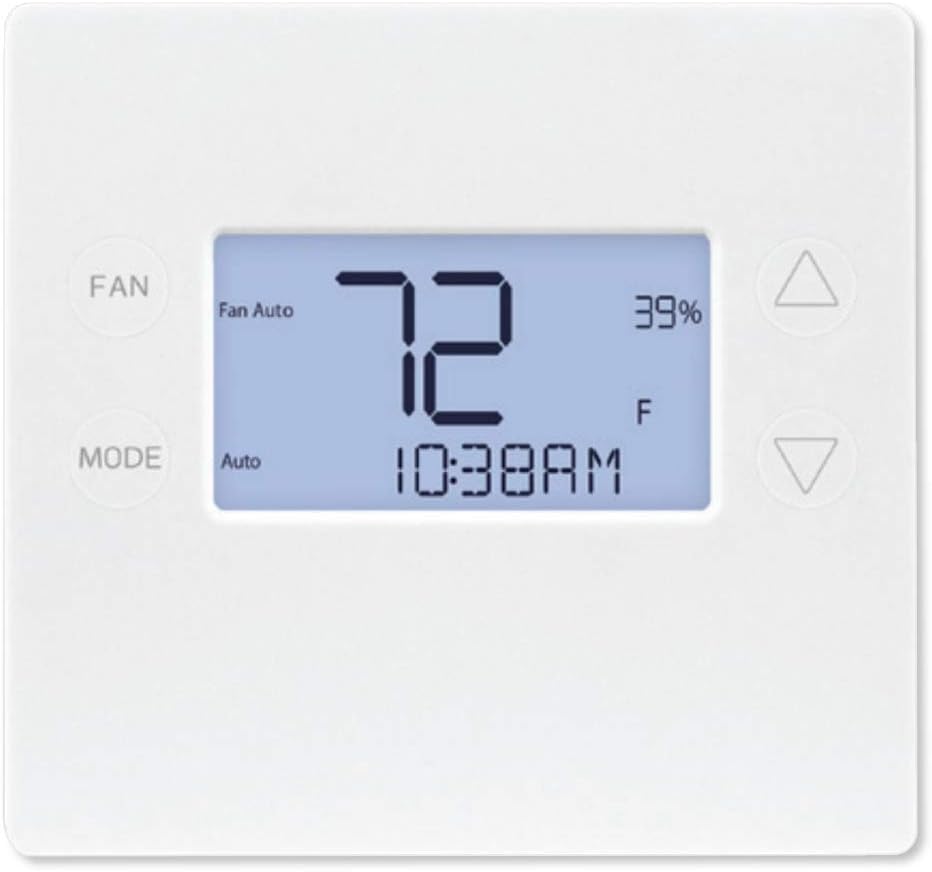

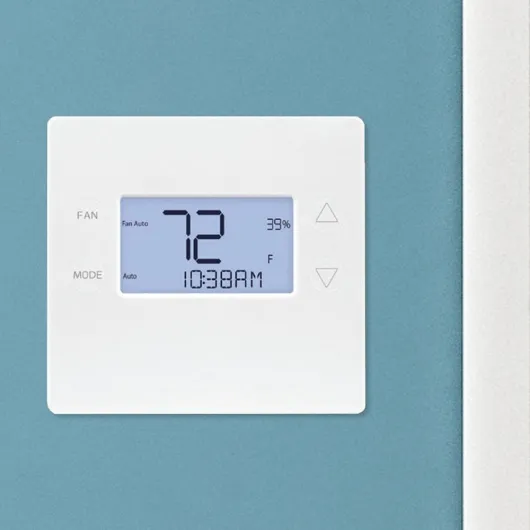

2GIG Z-Wave 700 Programmable Thermostat (2GIG-STZ1-345)

The 2GIG Z-Wave 700 Programmable Thermostat allows you to command your heating and AC systems from the thermostat or through your smart device using a Z-Wave network. The 2GIG Z-Wave 700 Programmable Thermostat works with most modern HVAC systems including:

• Standard Gas/Electric HVAC: 2-stage heating, 2-stage cooling.
• Heat Pump HVAC: 3-stage heating, 2-stage cooling and Humidifier/Dehumidifier support.

The thermostat can be powered by 24VAC through the connected HVAC system (if both "R" & "C" wires are available at the thermostat) or using four (4) AA batteries for up to two (2) years. Do not install batteries if the thermostat is powered by 24VAC. If the thermostat is battery powered it will not be able to repeat Z-Wave signals in your network.

Contents:

• Thermostat
• 4 x AA Batteries
• Mounting Hardware
• Install Manual
• Quick Start Guide

Note: Not compatible with 120/240 VAC systems. Batteries are not required for backup power.

Specifications:

• Programmable thermostat for: 24VAC 3H/2C non-heat pump/heat pump systems with humidifier/dehumidifier support.
• Room Temperature Measurement: Temp. Scale: Fahrenheit / Celsius (user selectable).
• Temp. Range: 32 to 122 degrees F (0 to 50 degrees C).
• Temp. Accuracy: +/- 1 degrees F (0.5 degrees C).
• Temperature Setpoint Range: Heat Set Point: 32 - 90 degrees F (0 - 32 degrees C).
• Cool Set Point: 61 - 122 degrees F (16 - 50 degrees C).
• Setting resolution: 1 degrees F (0.5 degrees C).
• Standard Systems: 1 Stage Heating and Cooling, 2 Stage Heating and Cooling.
• Heat Pump Systems: 1 Stage Heating and Cooling, 2 Stage Heating and Cooling, 2nd or 3rd Stage Aux Heating (Electric Heat Strips).
• Fan Control: Auto/On.
• Power Supply: AC: 18-26VAC 60Hz (R and C). 4x AA size battery (6VDC).
• Operating Temperature Range: 32 to 122 degrees F (0 to 50 degrees C).
• Operating Humidity: 10-90 percent Non-Condensing.
• Size: 5.75 x 4.5 x 1 in (14.6 x 11.4 x 2.5 cm).
• Weight: 1lb (0.45kg).
• Warranty: Limited 1-year.
• Manufacturer Part #: 2GIG-STZ1-345.

• Z-Wave Control: Enjoy seamless integration with your smart home system via Z-Wave technology, allowing remote access and control
• Versatile Compatibility: Works with most modern HVAC systems, including standard gas/electric, heat pump, and humidifier/dehumidifier support
• Easy Installation: Designed as a drop-in replacement for virtually any existing thermostat, no additional wires required
• Dual Power Source: Runs on 4 AA batteries for up to two years or 24VAC power from your HVAC system
• Clear Display: Features a large, easy-to-read LCD display for convenient temperature control and monitoring
