K-Type Thermocouple Wire AWG 24 Solid w - PVC Insulation - 50 Yard roll

• ＋ Durable PVC insulation
• ＋ Solid construction
• ＋ 50 yards length for extensive use
• ＋ Standard AWG 24 size

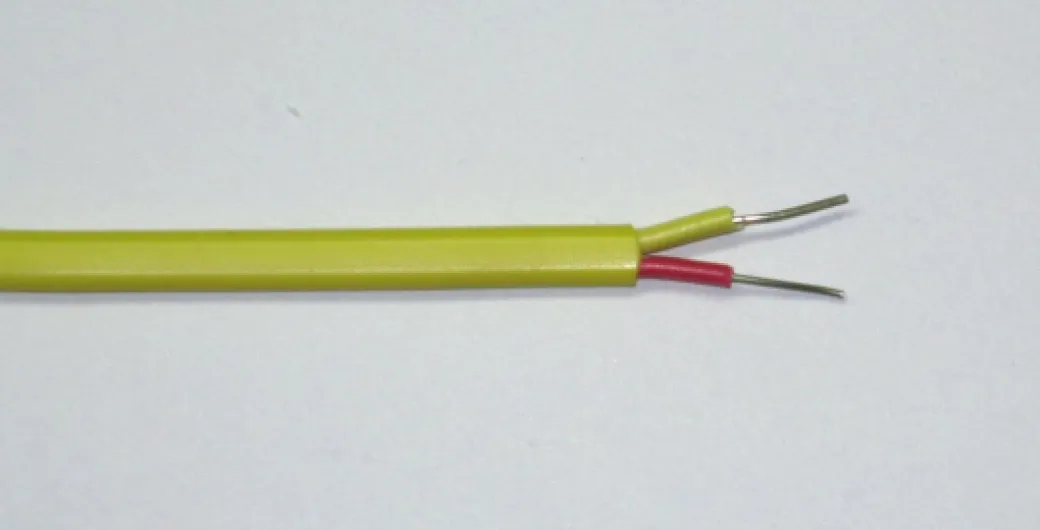

K-type thermocouple wire

This is a k-type thermocouple wire with yellow PVC insulation, which is good up to about 105 C or 221 F. When this wire is used as extension wire, it can transmit the temperature signal over the full type K range, from -320 to +2500 degree F.

This k-type thermocouple wire can be used to make your own thermocouples for a wide range of applications, or to make your own extension wire. The chromel alumel wire is made to standard thermocouple specifications.

• Sold in 50 yard (150 ft) rolls
• Order 2 units to receive 2 rolls, each 50 yard long
• Available in 10 yard, 100 yard, or 220 yard rolls in a different listing

• K-type Thermocouple wire with yellow vinyl insulation for making thermocouple or extension wire
• Chromel / Alumel type K thermocouple wire with Standard Accuracy (whichever is greater): +/- 2.2C or +/- .75%

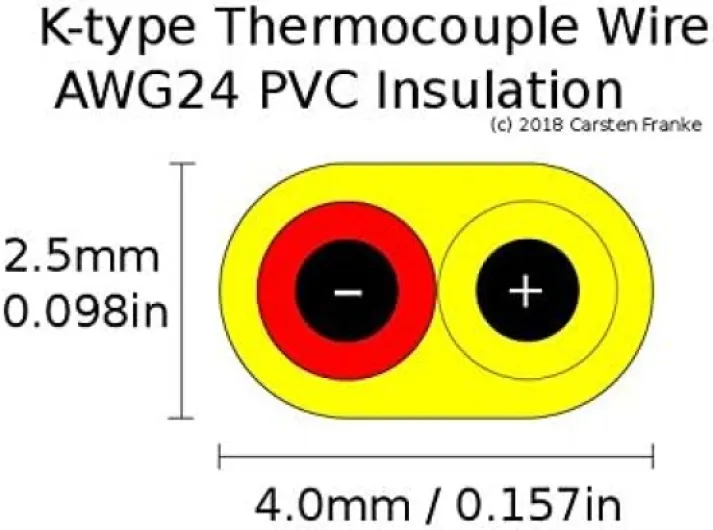

• Single strand wire, AWG 24 (0.51 mm)
• ANSI color coded PVC insulation, red = -, yellow = +
• Sold in 50 yard roll, 1 unit = 50 yard, order 2 units and you receive 2 rolls 50 yard each
